Today we created the housing parts and were introduced to the Hole Wizard feature. Explain how the Hole Wizard process works and explain the advantages of using the Hole Wizard feature over the Extruded Cut process.

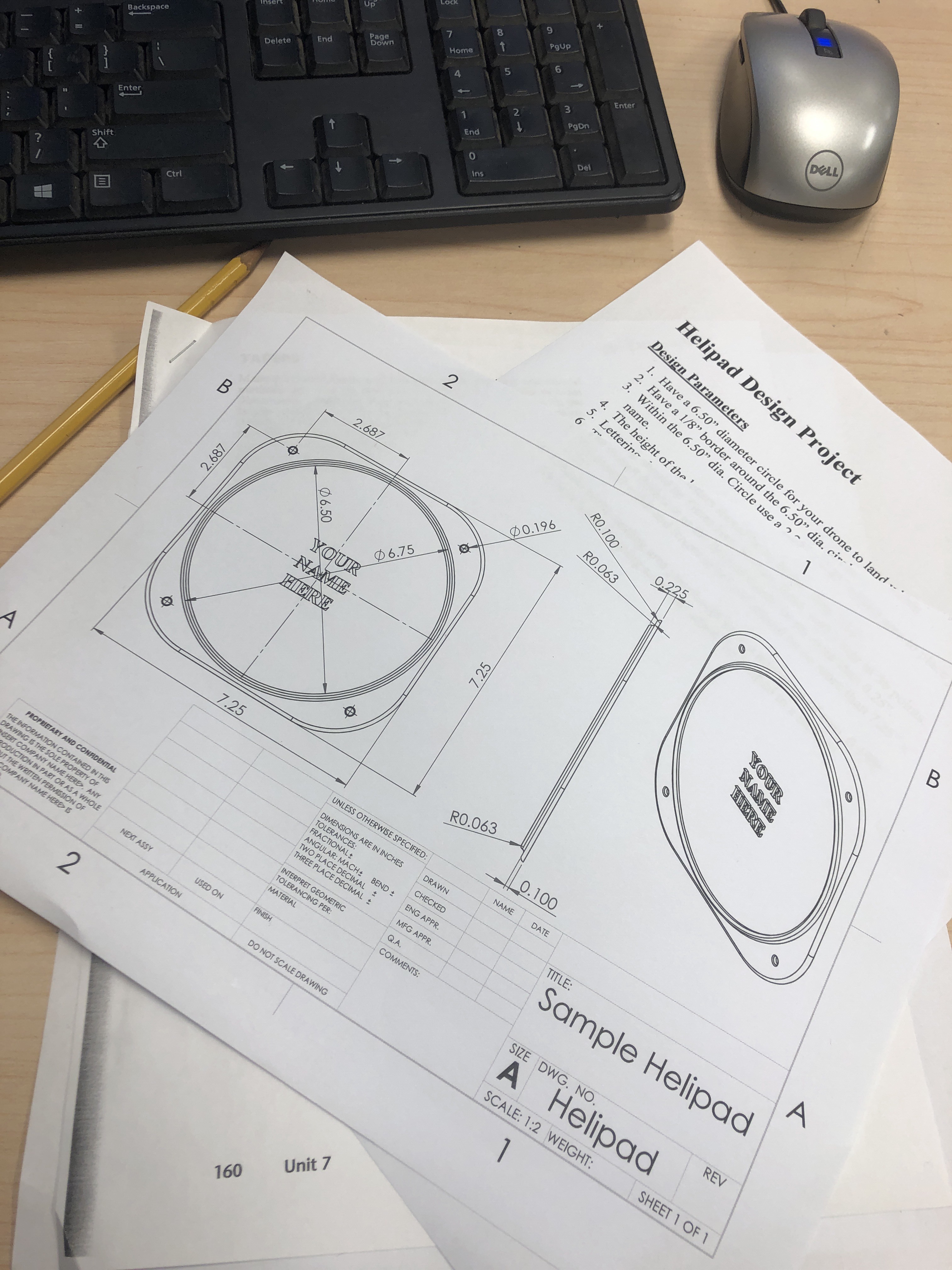

we helipad today it was fun and a little confusing because there were no step by step direction on a paper so it was hard to see the board and listen and follow directions. I personally am not good at listening and working at the same time but this lesson helped me practice my skills.the computer was not working properly I didn’t get my helipad done. I feel like i am better at getting around Solid work I know were most of the things are located.

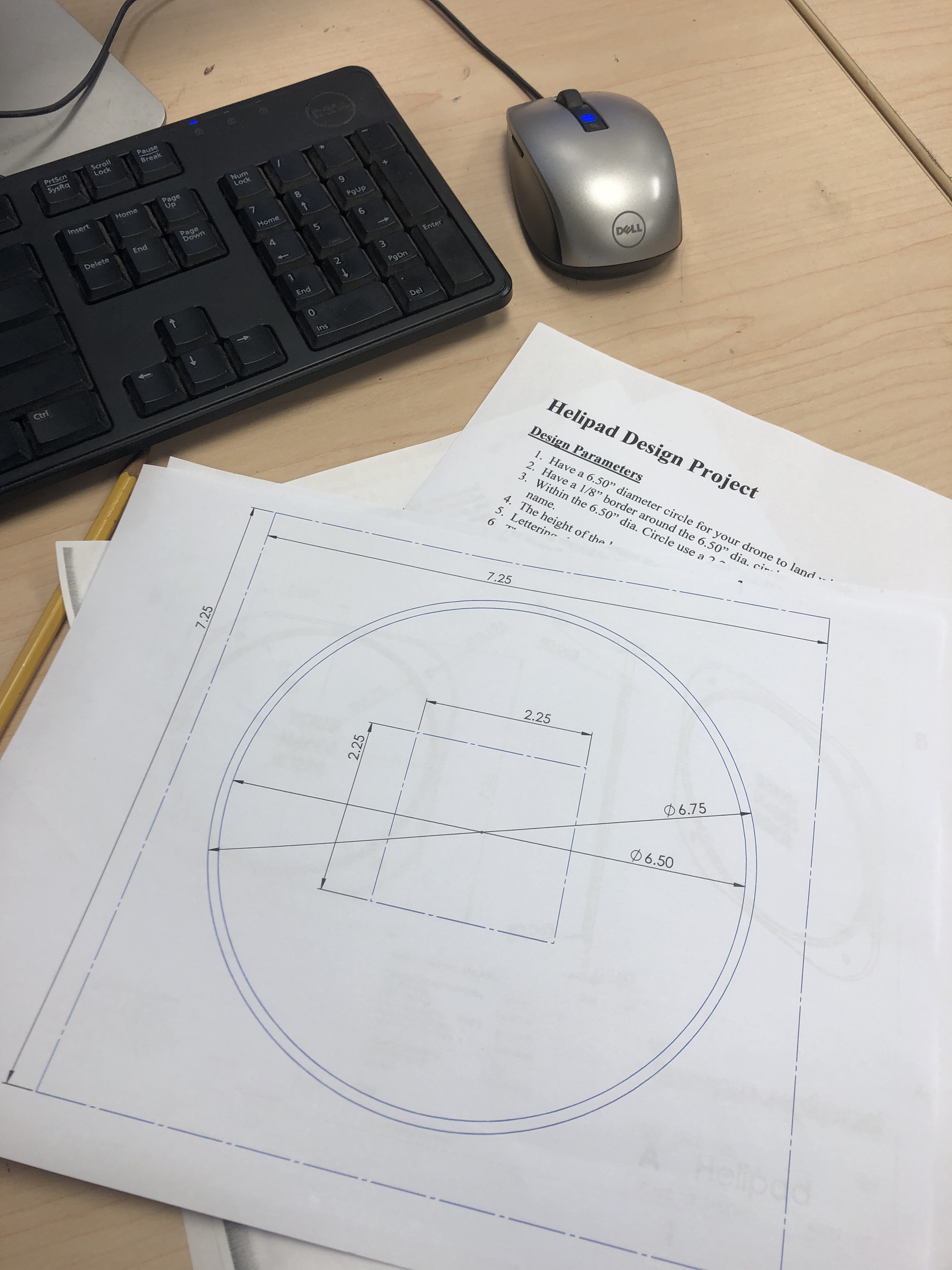

the square 7.25/7.25
larger circle radius 6.75 smaller circle radius was 6.50 and extruded these to circles
and another small square was created inside the circles that was 2.25/2.25 we wrote our names on the small square
my computure
So far the Helipad was the easiest project simple shapes and instructions to follow
